OCR Training Data Collection and Annotation

ScoreSight can save the image of every new reading together with the text it recognized. You can correct and approve those samples in the built-in Training Dojo, and then use them to train a Tesseract model for your scoreboard (see OCR Models).

On this page
  1. 1. Set up the training data folder
  2. 2. Collect samples
  3. 3. Annotate in the Training Dojo
    1. Keyboard shortcuts
  4. 4. Export and use the data
  5. Best practices

1. Set up the training data folder

Open Tools > OCR training data setup… (it was in the File menu in 0.1.x):

The Tools menu with Collect OCR training data and OCR Training Data Setup

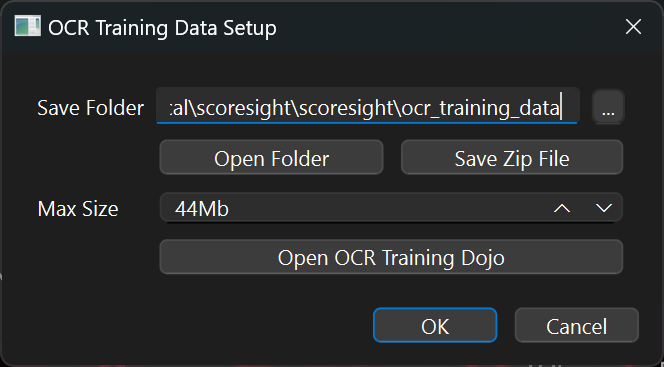

The OCR Training Data Setup dialog

Control What it does
Save Folder Where samples are saved. Click … to choose a folder. The default is the ocr_training_data folder inside the ScoreSight settings folder (and follows SCORESIGHT_DATA_DIR). Folders with non-ASCII characters in their path work on every platform.
Open Folder Opens the folder in your file manager (Windows, macOS and Linux), creating it first if it doesn’t exist yet.
Save Zip File Packs the whole folder into a .zip file wherever you choose.
Max Size The maximum size of the folder in MB (default 10). When the folder reaches it, ScoreSight stops saving new samples and writes one error to the log. It checks the folder again every 30 seconds and resumes saving when there is room again (for example after you moved samples out), or right away when you change Max Size or the folder.
Open OCR Training Dojo Opens the annotation tool (see below).

Click OK to apply your changes. ScoreSight creates the folder if needed. If it can’t (for example on a read-only drive), it shows a warning and keeps the previous settings.

In ScoreSight 0.1.x a changed Save Folder was ignored and samples always went to the default folder (#52). This is fixed in 0.2.0: the folder you choose is used right away and remembered.

2. Collect samples

Choose Tools > Collect OCR training data to start collecting, and choose it again to stop. It replaces the Save OCR Training Data button of 0.2.0 (the setting is the same, so it stays on if it was on), and the choice is remembered. While it is on, the status bar shows Collecting training data with a red dot, so it doesn’t fill the folder unnoticed; click it to open the setup:

The status bar while training data is collected

While it is on, every new reading (green) and every reading rejected by a filter (yellow) saves three files per box into the training data folder. The rejected readings are often the most useful ones to annotate. Empty and unchanged readings, template fields and boxes that are entirely outside the picture are not saved:

File Content
<id>.png The black-and-white image of the box, as the OCR saw it
<id>_gray.png The grayscale image of the box
<id>.txt The text ScoreSight recognized, UTF-8 (you correct it in the Training Dojo)

Collect samples from a real game or a recording, so you capture all digits and the conditions you care about (lighting, angles, changing digits). A few hundred samples per box type is a good start.

Saving samples never interrupts recognition. If a sample can’t be written, ScoreSight logs the error once and pauses saving for 30 seconds.

3. Annotate in the Training Dojo

Click Open OCR Training Dojo in the setup dialog.

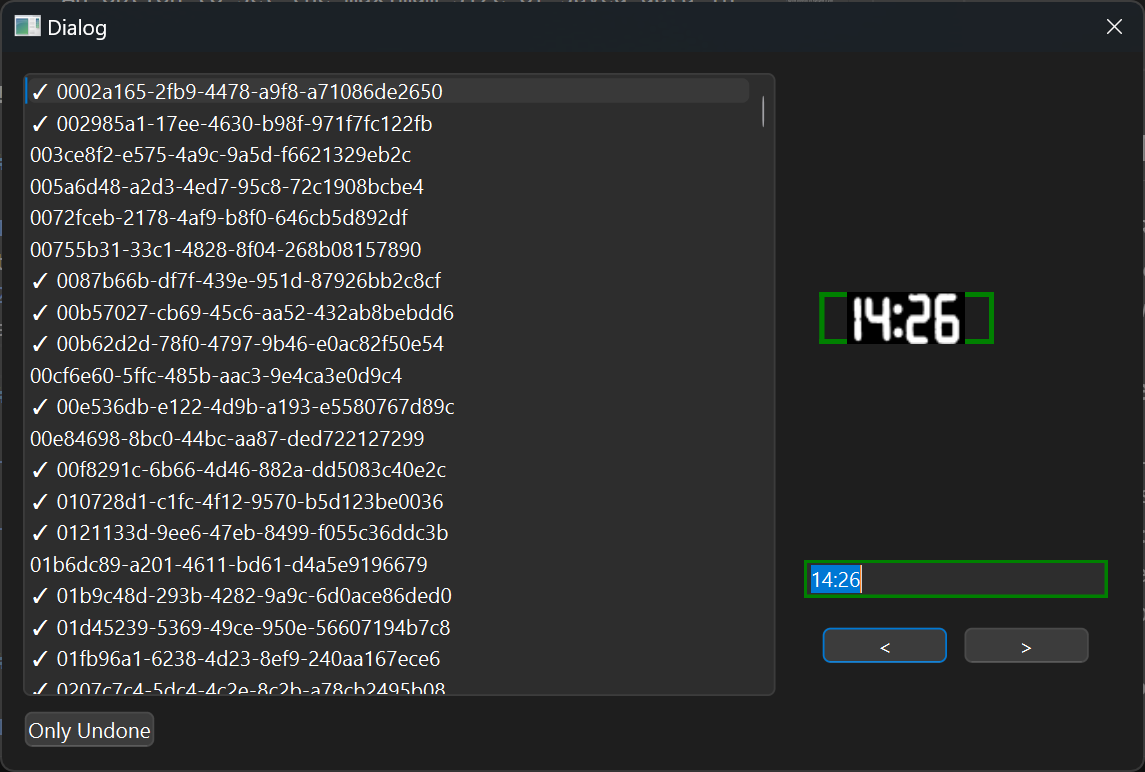

The Training Dojo

  • Left: all samples, sorted by name. Approved samples are shown in green with a ✓. Click a sample to open it.
  • Right: the current image and a text box with its annotation. When a sample is approved, the image and text box are outlined in green.

For each image:

  1. Check the text. If it is wrong, type the correct text.

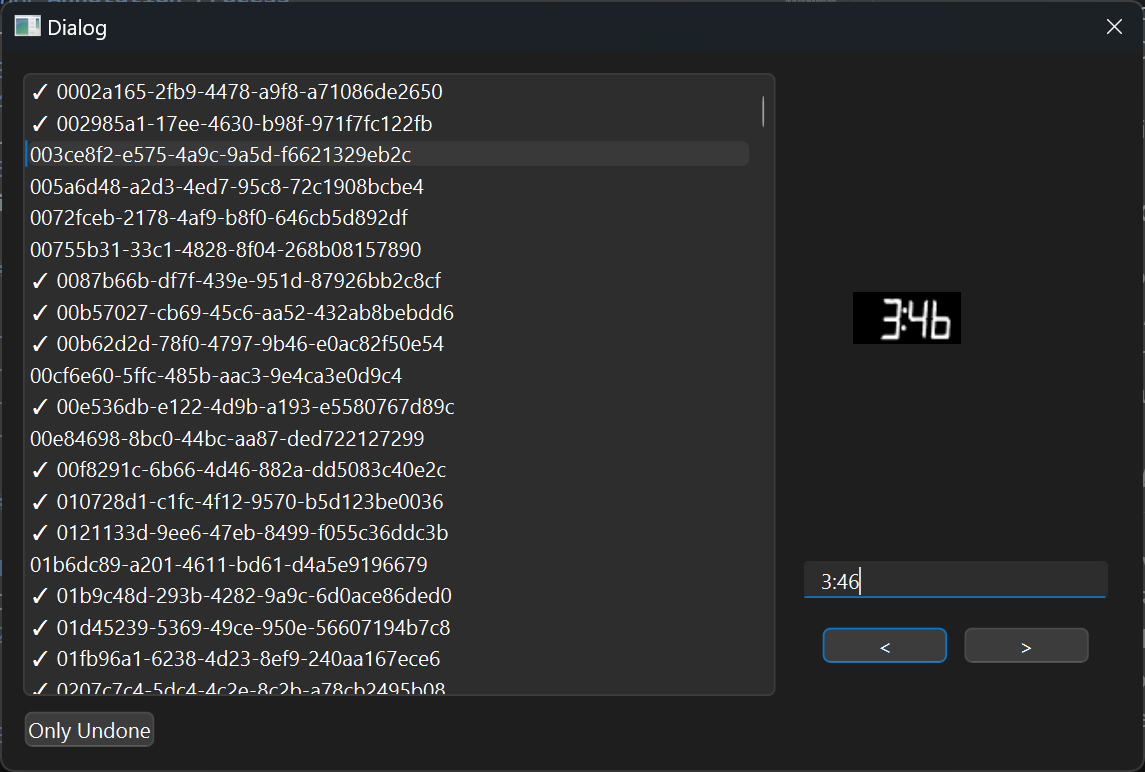

    Annotating a sample

  2. Press Enter to approve it and move to the next image.

Tick Only Undone to show only samples you haven’t approved yet. Your approvals are stored in approved_annotations.json in the training data folder, and corrected text is written back to the sample’s .txt file (UTF-8). An empty folder, a sample without its .txt file or a damaged approved_annotations.json doesn’t stop the Dojo from opening.

Keyboard shortcuts

On macOS, use ⌘ Cmd wherever this table says Ctrl.

Key Action
Enter Approve the annotation and go to the next image
Shift + Enter Go to the previous image
Up / Down Previous / next image
Ctrl + Up / Ctrl + Down Jump to the previous / next unapproved image
Ctrl + N / Ctrl + B Next / back
Ctrl + U Remove the approval from the current image

The shortcuts also work while you type in the annotation box, and plain letters are always typed into the annotation. Moving to another image saves the text you typed to the sample’s .txt file, without approving it. The tooltips of the < and > buttons and of the annotation box show the shortcuts.

In ScoreSight 0.1.x, the shortcuts were the plain letters N, B and U, so those letters couldn’t be typed into an annotation.

4. Export and use the data

  1. In OCR training data setup…, click Save Zip File and choose where to save the archive.
  2. Use the approved samples (each .png with its .txt) to train or fine-tune a Tesseract model with tesstrain. Then load it with OCR model > Load external model… (under All boxes, in the Box tab).

If you’d like your data to help improve the models bundled with ScoreSight, open an issue describing your scoreboard and the size of your dataset, and the maintainers will reply there. Please don’t attach large archives to an issue without asking first.

Best practices

  1. Annotate regularly, a few hundred samples at a time.
  2. Use the keyboard shortcuts. Enter to approve and continue is the fastest workflow.
  3. Double-check before approving. One wrong label teaches the model the wrong thing.
  4. Use Only Undone when you’re nearly done to find the remaining samples.
  5. Set a reasonable Max Size so collection doesn’t fill your disk during a long game.
