Browser Overlays

ScoreSight’s HTTP server serves ready-made overlay pages: a scorebug, a lower third, a clock and single fields, with a transparent background, updated live as the readings change. Any production software that can show a web page as a graphics layer can use them: OBS Browser Source, vMix Web Browser input, Wirecast Web Page source, CasparCG’s HTML producer, TriCaster Live Link, Magewell Director Webpage GFX, Epiphan Pearl Web Graphics and others. You can also design your own overlays in HTML and let ScoreSight serve them.

Video: Free scoreboard browser overlays for OBS, vMix and more (3:07)

On this page
  1. Quick start
  2. Built-in overlays
    1. Options
  3. Live updates
  4. Your own overlays
    1. The overlay contract
    2. Overlays hosted elsewhere
    3. What is served
    4. Live values for developers
  5. Adding the overlay in your software
    1. OBS Studio
    2. vMix
    3. Wirecast
    4. CasparCG
    5. TriCaster (Vizrt)
    6. Magewell Director
    7. Epiphan Pearl
    8. Other software
  6. Troubleshooting

Quick start

  1. In ScoreSight, open the Outputs tab and select HTTP server.
  2. Under Browser overlays, choose an Overlay, its Fields, Theme and Scale, and the Address: the network address when the production software runs on another computer, localhost when it runs on this one. The overlay shows the fields in the order you tick them (untick and tick a field to move it last): on the scorebug the first two are the home and away scores and the third is the clock. Each overlay keeps its own theme.
  3. Click Copy and paste the address into your software’s browser source. Set the source to your video size, for example 1920×1080 or 1280×720. Open in browser shows the overlay in your web browser first.

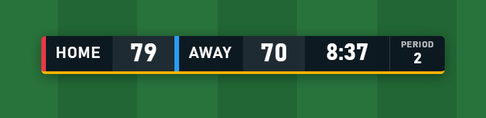

The built-in scorebug over video

The overlays are transparent outside their panels, so they key over your video without any extra settings. They follow the page width: the same overlay looks the same at 1920×1080, 1280×720 or 3840×2160.

http://<scoresight-ip>:18099/overlay lists every overlay (built-in and your own) and the live values, which is handy for checking the connection from the production computer.

Built-in overlays

Overlay Address Shows (by default)
Scorebug /overlay/scorebug Home and away scores with team names, the clock, then small cells for the other fields (Period)
Lower third /overlay/lower-third A bar of label-value pairs (Home, Away, Period, Time), with an optional title and subtitle
Clock /overlay/clock The clock large, the other fields (Period) small under it
Single field /overlay/field?name=Shot%20Clock One field’s value (Time by default), white text with a shadow

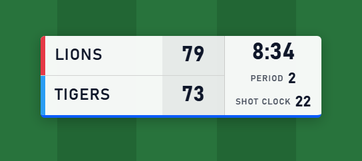

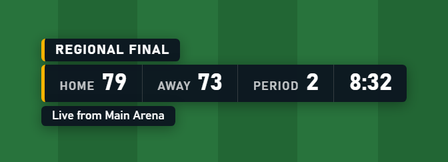

The scorebug stacked, light theme The lower third with a title and subtitle The clock

Until a field has a good reading, it shows a dash. A field keeps its last good value when a reading is rejected or empty, and also when ScoreSight stops or the connection drops, so a graphic on air never goes blank. A score that changes pops briefly; clocks (fields whose name contains Time or Clock) don’t animate.

Options

Add options to the address after a ?, separated by &, for example /overlay/scorebug?theme=light&scale=1.5. The builder in ScoreSight sets fields, theme and scale; the others you add by hand. Unknown or invalid values are ignored (the default is used), so an overlay address never fails.

Option Values Default
fields Field names separated by commas, in display order: fields=Home%20Score,Away%20Score,Time. For names that contain a comma, repeat field= instead: field=A&field=B The standard fields (above)
name The field of /overlay/field Time
labels Captions in the same order as the fields, separated by commas; leave one empty to keep its default: labels=Lions,Tigers,,QTR. On the scorebug the first two are the team names. label= can be repeated instead HOME, AWAY, then the field names (Home Score shows as Home, Time has none)
theme dark, light, minimal (no panels: white text with a shadow), bold dark (minimal for /overlay/field)
accent, bg, fg, home, away Colours: accent line, panel background, text, home and away team colours. Hex without # (ff0000, f00, or 1d3557e6 with transparency) or a CSS colour name (navy) The theme’s
font condensed, sans, serif, mono, or the name of a font installed on the computer that renders the page (font=Arial%20Black) condensed
scale 0.25 to 4 1
fit width: sizes follow the page width (designed for 1920 px). none: fixed sizes (as at 1920×1080) whatever the page size width
position top-left, top, top-right, left, center, right, bottom-left, bottom, bottom-right, inside a 5 % safe margin Scorebug top-left, lower third bottom-left, clock top-right, field center
layout Scorebug: row (one line) or stack (the teams on two rows, the clock beside them) row
animate pop, fade, slide, none pop
title, subtitle Lower third: text above and below the bar none
transport auto, poll (see Live updates) auto
poll Polling interval in milliseconds, 100 to 10000 500

Fonts come from the computer that shows the page (no web fonts are downloaded: broadcast machines are often offline). condensed uses Bahnschrift (Windows 10 and later), DIN Alternate (macOS) or Roboto Condensed when available, and falls back to Arial.

Live updates

The overlays don’t poll ScoreSight several times a second. They keep one connection open and ScoreSight pushes each change as it happens (Server-Sent Events), so values appear within a frame or two of the reading and an idle overlay costs almost nothing, even on a small device.

  • When the connection drops (ScoreSight restarts, the network blips), the page reconnects by itself within a few seconds and gets the current values. A connection that goes silent (a sleeping computer, a pulled cable) is noticed within about 20 seconds and reopened.
  • Browsers keep at most 6 connections open to one server. All the ScoreSight overlays open in one browser (tabs, or browser sources that share one engine) therefore share a single connection.
  • Where the push connection can’t work (an engine without EventSource, or a proxy that holds it back), the page polls /overlay/state every half second instead. Add ?transport=poll to force polling.

If the browser source was loaded while ScoreSight wasn’t running, the page couldn’t load at all: refresh the source once ScoreSight runs (in OBS, Refresh cache of current page in the source’s properties).

Your own overlays

Put your own HTML pages, with their styles, scripts, images and fonts, in the overlays folder in ScoreSight’s settings folder. ScoreSight creates it the first time it starts, with an example overlay (example.html). The folder button next to the Overlay list opens it.

Windows macOS Linux
%LOCALAPPDATA%\scoresight\scoresight\overlays ~/Library/Application Support/scoresight/overlays ~/.local/share/scoresight/overlays

A file <folder>/my-board.html is served at http://<scoresight-ip>:18099/overlay/custom/my-board.html, and subfolders work too (/overlay/custom/basketball/board.html). The Overlay list in ScoreSight shows every .html file of the folder (it is read again each time the list opens).

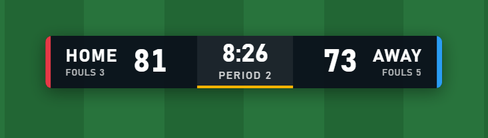

The example overlay

The overlay contract

Load ScoreSight’s client and mark the elements that show values with data-field and the field’s exact name:

<!DOCTYPE html>
<html>
<head>
<style>
  html, body { background: transparent; }
  .score.ss-changed { animation: pop .6s; }
  @keyframes pop { from { transform: scale(1.4); } }
</style>
</head>
<body>
  <span class="score" data-field="Home Score">0</span> -
  <span class="score" data-field="Away Score">0</span>
  <span data-field="Time">0:00</span>

  <script src="/overlay/client.js"></script>
  <script>
    ScoreSight.on("change", function (change) {
      if (change.field === "Home Score" && !change.initial) {
        console.log("Home scored:", change.previous, "->", change.value);
      }
    });
  </script>
</body>
</html>

What /overlay/client.js does:

  • Values. Every element with a data-field attribute gets the field’s last good value as its text (never as HTML). Until the field has a good reading, the element keeps the content you wrote in it. Elements added later are filled by ScoreSight.render().
  • Attributes. It sets data-state (Success, SameNoChange, FailedFilter, Empty, or Missing for a field that doesn’t exist) and data-empty ("true" until the field has a value) on those elements, so CSS can style them, for example [data-empty="true"] { opacity: .4 }. The <html> element gets data-ss-connected="true" or "false".
  • Class. It adds the class ss-changed to an element for one second when its value changes (not for the first value), restarting it on each change: use it for animations.

  • Events, fired on document (also through ScoreSight.on(name, function (detail) {...})):

    Event detail When
    scoresight:change {field, value, previous, state, good, initial, removed} A field’s value changed; initial is true for the first value after the page loads, removed when the field no longer exists (its box was deleted or renamed)
    scoresight:update {fields, changed, snapshot} After each update: all the fields, the names of those that changed (value or state)
    scoresight:connection {connected, transport} The connection to ScoreSight came or went; transport is "sse" or "poll"
  • The ScoreSight object: ScoreSight.fields (name → {value, state, good}), ScoreSight.get("Home Score") (the value or null), ScoreSight.connected, ScoreSight.transport, ScoreSight.on(...) and ScoreSight.render().
  • Options on the script tag: data-transport="poll", data-poll-ms="250", data-changed-ms="1500" (how long ss-changed stays), data-shared="false" (don’t share the connection with the other overlay pages), and data-server="http://192.168.1.20:18099" (another server than the one the script came from). ?transport=, ?poll= and ?shared= in the page’s address override them.

The client is plain JavaScript (ES5) without dependencies, so it also runs in older embedded browsers. Values are field names exactly as in the fields list, including spaces and capitals; template fields work like any other field.

Overlays hosted elsewhere

A page that isn’t served by ScoreSight (a file in CasparCG’s templates folder, a file opened in a browser source, a page on another web server) can use the client too: load it with ScoreSight’s full address. The client then talks to the server it came from (ScoreSight allows requests from any origin):

<script src="http://192.168.1.20:18099/overlay/client.js"></script>

Such a page opens its own connection (it can’t share the one of the overlays that ScoreSight serves).

What is served

Only files inside the overlays folder are served, of these types: .html, .htm, .css, .js, .mjs, .json, .txt, .svg, .png, .jpg, .jpeg, .gif, .webp, .avif, .ico, .woff, .woff2, .ttf, .otf, .mp4, .webm, .mp3, .ogg, .wav. Files and folders whose name starts with a dot are never served, and neither is anything outside the folder (.., absolute paths, links that point out). Files are sent with Cache-Control: no-cache, so a changed file shows on the next refresh.

Live values for developers

The overlays’ data is available to any client:

Endpoint Returns
GET /events Server-Sent Events (text/event-stream): snapshot on connect, then change events, and heartbeat every 5 seconds
GET /overlay/state The current snapshot as JSON (for polling)
event: snapshot
data: {"version":7,"fields":{"Home Score":{"value":"21","state":"Success"},"Time":{"value":"4:30","state":"SameNoChange"}}}

event: change
data: {"version":8,"fields":{"Time":{"value":"4:29","state":"Success"}}}

event: change
data: {"version":9,"fields":{},"removed":["Old box"]}

event: heartbeat
data: {"version":9}

value is the field’s last good reading (null until it has one) and state is the state of its latest reading (see States). A change lists only the fields whose value or state changed. version increases with each change while ScoreSight runs and starts over when it restarts, so compare versions only for equality. A client that reconnects gets a fresh snapshot.

Adding the overlay in your software

The steps below come from each vendor’s documentation. None of these products has been tested with ScoreSight’s overlays yet: they were checked in Microsoft Edge (Chromium, the engine most of these products embed), with live values, transparency, 1920×1080 and 1280×720, reconnecting after a ScoreSight restart, and 10 overlays open at once. Please report what works (or doesn’t) in your setup.

In all of them, use the network address of the ScoreSight computer (http://192.168.x.x:18099/...) when the software runs on another computer, and allow ScoreSight through that computer’s firewall (port 18099).

OBS Studio

  1. + in Sources > Browser.
  2. URL: the overlay address. Width / Height: your canvas, for example 1920 × 1080.
  3. Leave Custom CSS as it is (OBS’s default makes the background transparent; the overlays already are).

Notes:

  • The page is served by ScoreSight itself, so OBS 33’s stricter rules for pages that reach into the local network (Chromium’s Local Network Access checks) don’t apply.
  • Several ScoreSight overlays in OBS share one connection when OBS runs its browser sources in one engine. If an overlay stays empty while others work, add ?transport=poll to its address.
  • Shutdown source when not visible is fine: the overlay gets the current values when it comes back.
  • The OBS output (text sources over the OBS WebSocket) is an alternative that needs no browser source.

vMix

  1. Add Input > Web Browser.
  2. Enter the overlay address, and set the size to your production format (1920 × 1080).
  3. Put the input on an overlay channel. The background is transparent because the overlay page has no background colour.

Notes: vMix renders web pages with an embedded Chromium; the client is plain ES5, so it works whichever browser version your vMix uses. The built-in vMix output (GT title fields over the Web API) is an alternative.

Wirecast

  1. Add Shot > Web Page.
  2. URL: the overlay address. Width / Height: 1920 × 1080 (or your canvas). Tick Transparent Background.

Notes: Wirecast uses WebView2 on Windows (since 14.x). Web Page sources are in Wirecast Studio and Pro. Shutdown when inactive is fine. Wirecast’s text sources can also read ScoreSight’s text files.

CasparCG

Play the overlay with the HTML producer, on a layer above your video:

PLAY 1-20 [HTML] "http://192.168.1.20:18099/overlay/scorebug"

STOP 1-20 or CLEAR 1-20 takes it off. The page sets its own values, so it doesn’t use CasparCG’s CG ADD / CG UPDATE template data.

Notes:

  • CasparCG renders HTML with an embedded Chromium (CEF; CasparCG 2.5 has CEF 142, the 2.3 LTS line a much older one). Frames have an alpha channel, so a transparent page keys over video; this hasn’t been tested on a real server.
  • A template in CasparCG’s templates folder is loaded as a file:// page: load the client with ScoreSight’s full address (see Overlays hosted elsewhere). Whether CasparCG’s CEF lets a file:// page reach the network hasn’t been tested; the PLAY [HTML] "http://..." form above avoids the question.
  • Several overlays on different layers share one connection (they run in one engine).

TriCaster (Vizrt)

  1. Hover one of the first 10 buffer slots, click + to open the Media Browser, and choose Web Browser (Live Link).
  2. Enter the overlay address.
  3. Use the buffer in a DSK or as a key source.

Notes: Live Link needs a recent TriCaster software revision (Vizrt’s partners cite Rev 7–9 or later). The rendered page keeps its alpha. Untested: how often the buffer refreshes on air. For native title pages, TriCaster’s DataLink is the other route.

Magewell Director

  1. On the Director, tap GFX > Create New > Webpage.
  2. Enter the overlay address and choose Transparent CSS.

Notes: a Director holds up to 7 webpage GFX. The page runs in the device’s own browser: the push connection costs it far less than polling, so keep the default transport. Untested: how fast the device’s browser updates, and the device’s own scoreboard GFX stay unused by this route.

Epiphan Pearl

Add a Web Graphics (HTML) source to a layout with the overlay address (Pearl-2 and Pearl Mini, firmware 4.19 or later).

Notes: untested whether Pearl’s web graphics accept a plain http:// address with a port on the local network and keep the page’s transparency. Pearl’s text overlays with variables (%(name)) are the other route.

Other software

The same address works in other products that show web pages as graphics, for example Chyron PRIME’s HTML Input (5.3 and later), wTVision R³’s web page texture and RT Software Swift’s HTML5 graphics. None of these is tested. XSplit Broadcaster’s Webpage source and the webpage element of Livestream Studio’s GFX Designer take the address too (see Works With… for every product). Software that takes NDI with alpha but no web pages (for example MagicSoft CG 10) can get an overlay through OBS: put the overlay in a scene and send it out with the DistroAV (NDI) plugin.

Troubleshooting

  • The overlay is empty (dashes everywhere): the field names don’t match. They must be exactly the names in ScoreSight’s fields list. Open http://<scoresight-ip>:18099/overlay to see the names and values ScoreSight has.
  • Nothing at all, not even the panels: the software can’t reach ScoreSight. Open the same address in a browser on that computer; check the address, the port and the firewall of the ScoreSight computer. If ScoreSight wasn’t running when the source loaded, refresh the source.
  • One overlay out of many stays empty: the engine may have run out of connections (browsers allow 6 per server). Add ?transport=poll to that overlay’s address, or use a different address for some overlays (for example localhost for some and 127.0.0.1 for others count separately).
  • Values freeze: check Pause outputs in ScoreSight (the overlays follow it like the other outputs), and whether the readings are good (green) in the viewer.
  • The overlay is too small or too big: set the browser source to the size of your video (1920×1080), or use scale.

Anyone who can reach port 18099 can read the overlays and the files in the overlays folder (the HTTP server has no password; see SECURITY.md). Don’t put private files in the overlays folder, and block the port on untrusted networks.
